Swift springs are a great way to Improve ride quality and customize your coilovers spring rates. Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.

If you are not sure which springs your kit needs, please ask and we will be happy to help!

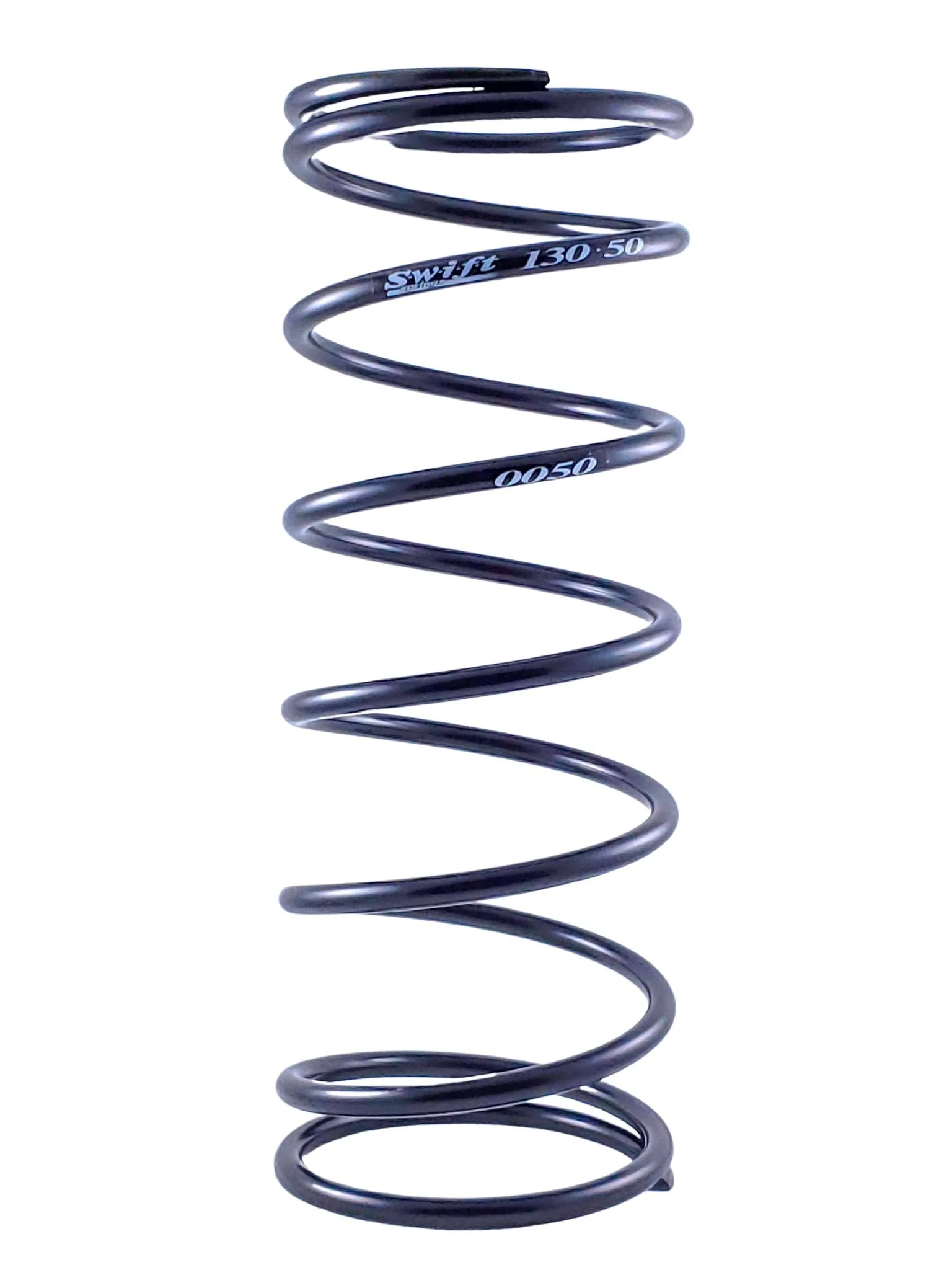

• 13inch Length Conventional Swift Springs
• Sold as a single coilover spring

PART #	SPRING RATE	USABLE STROKE	MAX STROKE	MAX LOAD
	lbs/inch	inch	inch	lbs
130-500-050	50	10.5	10.5	525
130-500-080	80	10.4	10.4	827
130-500-100 BP	100	10.0	10.2	1,028
130-500-125 BP	125	10.0	10.2	1,279
130-500-150 BP	150	9.7	10.1	1,517
130-500-175 BP	175	9.4	9.9	1,738
130-500-200 BP	200	9.2	9.7	1,940
130-500-225 BP	225	9.2	9.8	2,205
130-500-250	250	8.5	9.5	2,383
130-500-275	275	8.3	9.5	2,602
130-500-300	300	8.4	9.1	2,735
130-500-325	325	8.2	9.0	2,928
130-500-350	350	7.9	9.0	3,150
130-500-375	375	7.7	9.0	3,372
130-500-400	400	7.6	8.8	3,532
130-500-450	450	7.5	8.6	3,873
130-500-500	500	7.4	8.3	4,173
