Swift springs are a great way to Improve ride quality and customize your coilovers spring rates. Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.

If you are not sure which springs your kit needs, please ask and we will be happy to help!

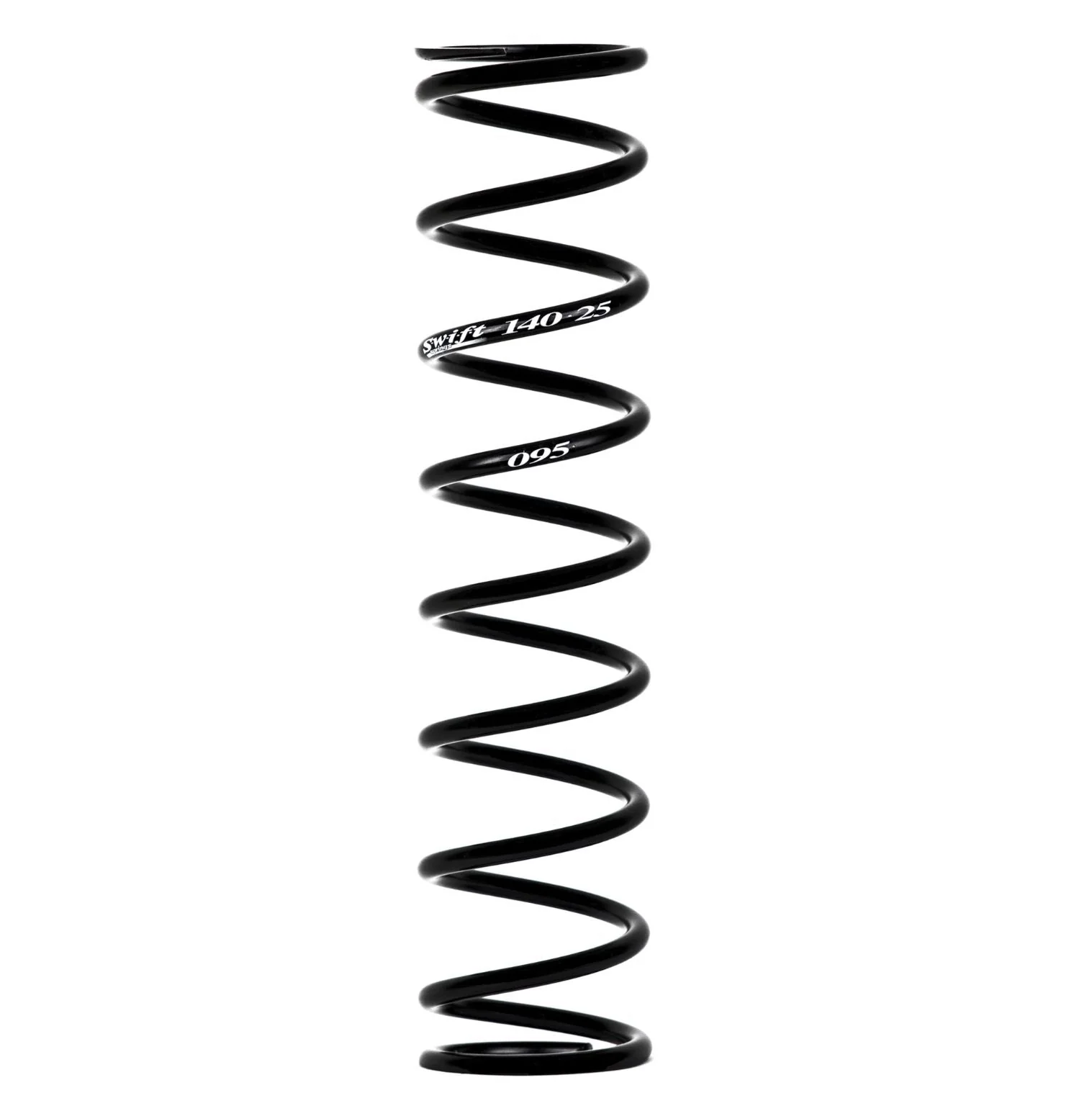

• 14" Length Swift Springs
• Sold as a single coilover spring
• Barrel Type

PART #	SPRING RATE	USABLE STROKE	MAX STROKE	MAX LOAD
	lbs/inch	inch	inch	lbs
140-250-050 B	50	11.3	11.3	562
140-250-080 B	80	10.8	10.8	862
140-250-100 BP	100	10.8	10.8	1,082
140-250-125 BP	125	10.7	10.7	1,338
140-250-150 BP	150	10.5	10.5	1,570
140-250-165 BP	165	9.8	10.4	1,715
140-250-175 BP	175	9.8	10.3	1,808
140-250-185 BP	185	9.7	10.2	1,889
140-250-200 BP	200	9.7	10.1	2,030
140-250-225 B	225	8.1	10.4	2,209
140-250-250 B	250	7.8	10.3	2,432
140-250-275 B	275	8.0	9.8	2,541
140-250-300 B	300	7.7	9.8	2,777
140-250-325 B	325	7.6	9.6	2,944
