Swift Springs 16in Coilover Springs Barrel Type 2.5in ID - Single

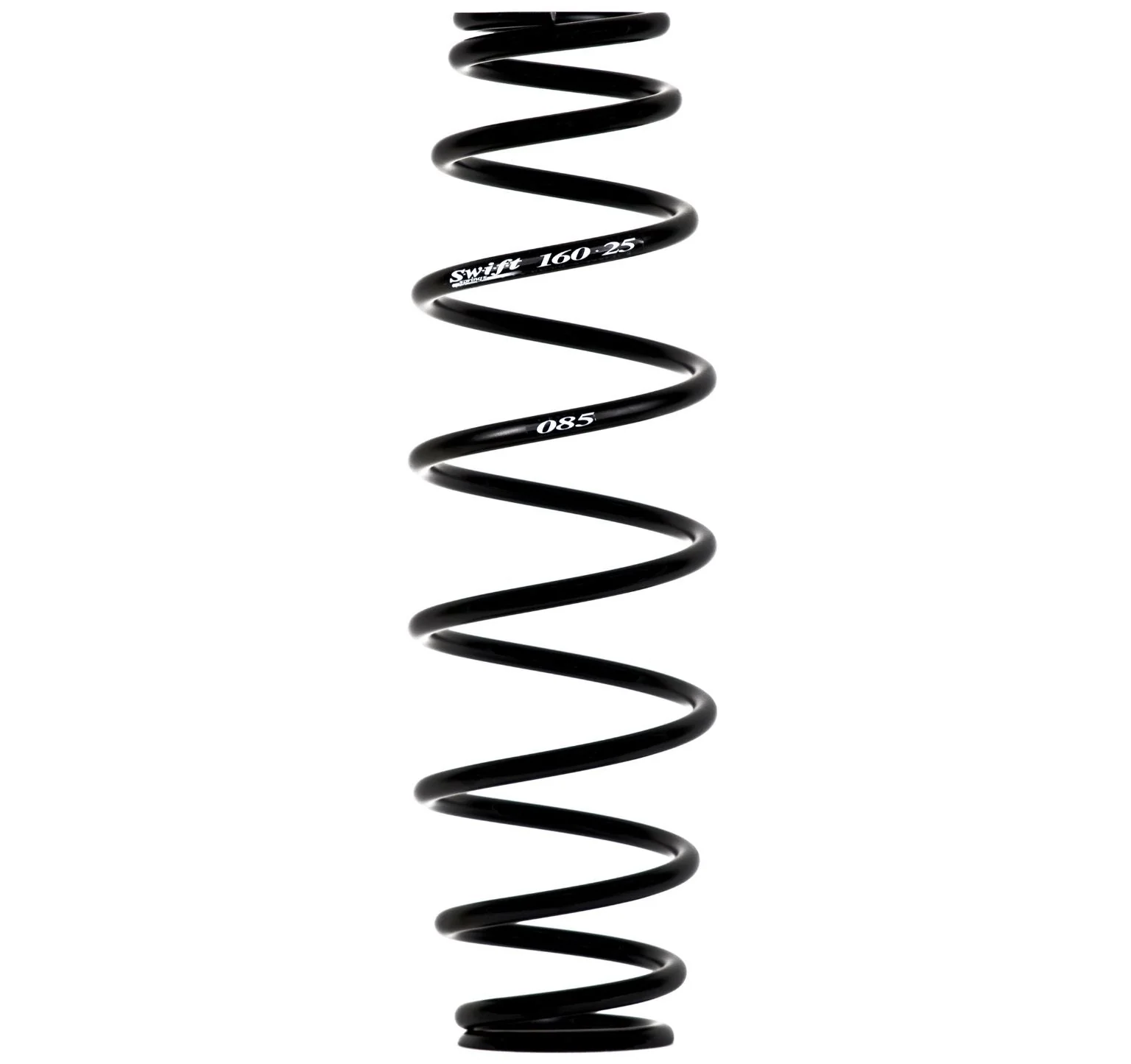

Product image 1

Swift Springs 16in Coilover Springs Barrel Type 2.5in ID - Single

Swift springs are a great way to Improve ride quality and customize your coilovers spring rates. Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.

If you are not sure which springs your kit needs, please ask and we will be happy to help!

  • 16" Length Swift Springs
  • Sold as a single coilover spring
  • Barrel Type
PART # SPRING RATE USABLE STROKE MAX STROKE MAX LOAD
lbs/inch inch inch lbs
160-250-050 B 50 12.4 12.4 615
160-250-080 B 80 11.6 11.6 935
160-250-100 BP 100 12.4 12.4 1246
160-250-110 BP 110 11.9 11.9 1,308
160-250-125 BP 125 12.1 12.1 1516
160-250-150 BP 150 11.5 12.2 1827
160-250-175 BP 175 11.4 12.0 2094
160-250-200 B 200 9.6 11.5 2,308
160-250-250 B 250 9.2 10.8 2,700
160-250-300 B 300 8.9 10.3 3,081
Select Spring Rate
From $44.92

Original: $128.35

-65%
Swift Springs 16in Coilover Springs Barrel Type 2.5in ID - Single—

$128.35

$44.92

Product Information

Shipping & Returns

Description

Swift springs are a great way to Improve ride quality and customize your coilovers spring rates. Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.

If you are not sure which springs your kit needs, please ask and we will be happy to help!

  • 16" Length Swift Springs
  • Sold as a single coilover spring
  • Barrel Type
PART # SPRING RATE USABLE STROKE MAX STROKE MAX LOAD
lbs/inch inch inch lbs
160-250-050 B 50 12.4 12.4 615
160-250-080 B 80 11.6 11.6 935
160-250-100 BP 100 12.4 12.4 1246
160-250-110 BP 110 11.9 11.9 1,308
160-250-125 BP 125 12.1 12.1 1516
160-250-150 BP 150 11.5 12.2 1827
160-250-175 BP 175 11.4 12.0 2094
160-250-200 B 200 9.6 11.5 2,308
160-250-250 B 250 9.2 10.8 2,700
160-250-300 B 300 8.9 10.3 3,081
