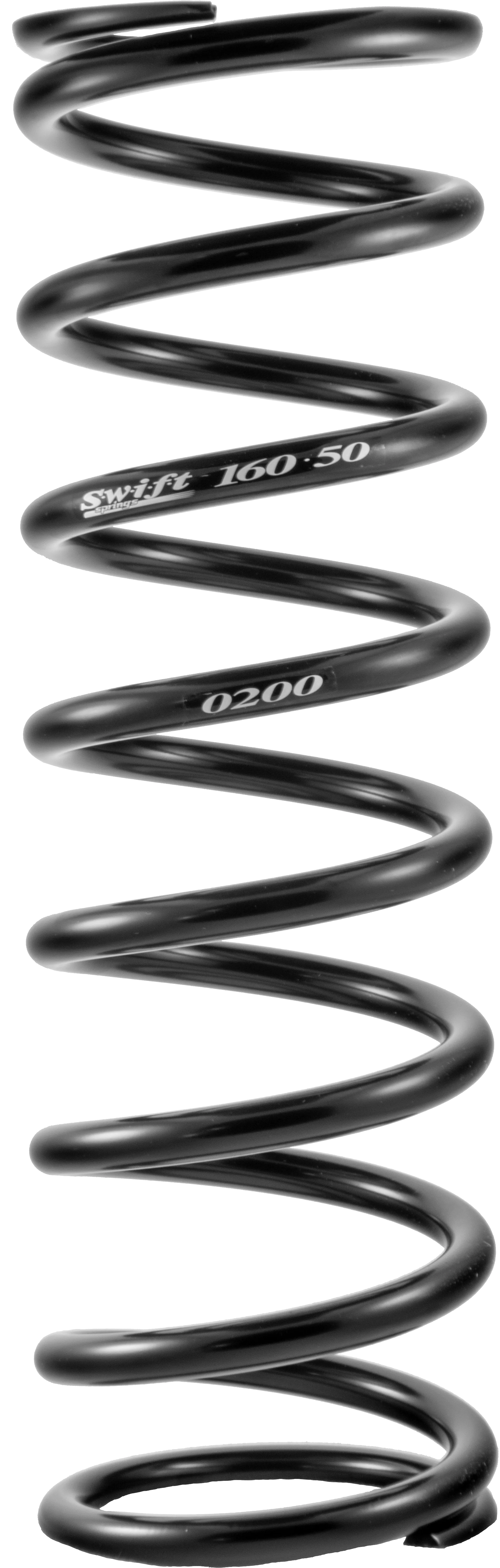

Swift Springs 16in Conventional Coilover Springs 5in OD - Single

Product image 1

Swift Springs 16in Conventional Coilover Springs 5in OD - Single

Swift springs are a great way to Improve ride quality and customize your coilovers spring rates. Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.

If you are not sure which springs your kit needs, please ask and we will be happy to help!

  • 16inch Length Conventional Swift Springs
  • Sold as a single coilover spring
  • Part numbers containing BP are Bulletproof Springs
PART # SPRING RATE USABLE STROKE MAX STROKE MAX LOAD
lbs/inch inch inch lbs
160-500-050 50 12.6 12.6 628
160-500-065 65 12.1 12.1 785
160-500-080 80 12.2 12.2 977
160-500-100 100 12.1 12.1 1,219
160-500-112 112 12.0 12.0 1,349
160-500-125 BP 125 12.0 12.3 1,541
160-500-150 BP 150 11.7 12.0 1,808
160-500-175 BP 175 10.7 12.0 2,100
160-500-200 200 10.5 11.7 2,350
160-500-225 225 10.4 11.4 2,575
Select Spring Rate
From $44.92

Original: $128.35

-65%
Swift Springs 16in Conventional Coilover Springs 5in OD - Single—

$128.35

$44.92

Product Information

Shipping & Returns

Description

Swift springs are a great way to Improve ride quality and customize your coilovers spring rates. Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.

If you are not sure which springs your kit needs, please ask and we will be happy to help!

  • 16inch Length Conventional Swift Springs
  • Sold as a single coilover spring
  • Part numbers containing BP are Bulletproof Springs
PART # SPRING RATE USABLE STROKE MAX STROKE MAX LOAD
lbs/inch inch inch lbs
160-500-050 50 12.6 12.6 628
160-500-065 65 12.1 12.1 785
160-500-080 80 12.2 12.2 977
160-500-100 100 12.1 12.1 1,219
160-500-112 112 12.0 12.0 1,349
160-500-125 BP 125 12.0 12.3 1,541
160-500-150 BP 150 11.7 12.0 1,808
160-500-175 BP 175 10.7 12.0 2,100
160-500-200 200 10.5 11.7 2,350
160-500-225 225 10.4 11.4 2,575
