Swift Springs 4.5in Coilover Springs 1.63in ID - Single

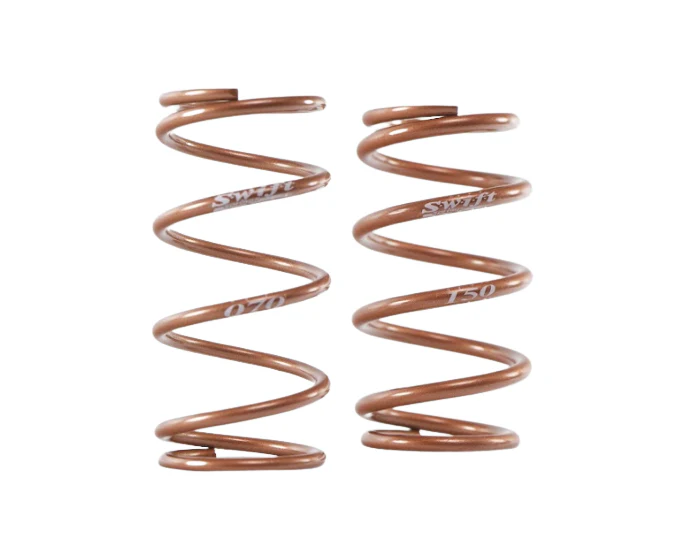

Product image 1
1 / 6

Swift Springs 4.5in Coilover Springs 1.63in ID - Single

Swift springs are a great way to Improve ride quality and customize your coilovers spring rates.  Most coilover brands do not recommend going more than 2-4K higher or lower than original spring rates for the best damper performance.

If you are not sure which springs your kit needs, please ask and we will be happy to help!

  • 4.5" Swift Springs
  • Sold as a single coilover spring
  • Barrel Type Quarter Midget
PART # SPRING RATE USABLE STROKE MAX STROKE MAX LOAD
lbs/inch inch inch lbs
045-163-070B 70 2.6 3.5 245
045-163-080B 80 2.6 3.5 277
045-163-090B 90 2.4 3.4 308
045-163-100B 100 2.4 3.4 339
045-163-110B 110 2.4 3.3 368
045-163-120B 120 2.4 3.3 397
045-163-130B 130 2.4 3.2 420
045-163-140B 140 2.4 3.2 452
045-163-150B 150 2.4 3.2 478
Select Spring Rate
From $16.36

Original: $46.75

-65%
Swift Springs 4.5in Coilover Springs 1.63in ID - Single—

$46.75

$16.36
